IOT Based Temperature and Humidity Monitoring using Arduino Uno



Introduction :-

Using Internet of Things (IOT), we can control any electronic equipment in homes and industries. Moreover, you can read a data from any sensor and analyse it graphically from anywhere in the world. Here, we can read temperature and humidity data from DHT11 sensor and upload it to a ThingSpeak cloud using Arduino Uno and ESP8266-01  module. Arduino Uno is MCU, it fetch a data of humidity and temperature from DHT11 sensor and Process it and give it to a ESP8266 Module. ESP8266 is a WiFi module, it is one of the leading platform for Internet of Things. It can transfer a data to IOT cloud.

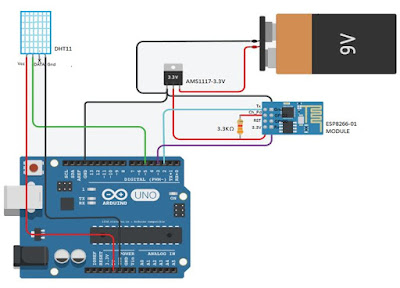

Circuit Connection :-

Hardware Requirements

• Arduino Uno
• ESP8266-01
• DHT11
• AMS1117-3.3V
• 9V battery

Software Requirements

• Arduino IDE

Construction and Testing :-

ThingSpeak is an open source platform to store and retrieve a data for Internet of Things application. To use this, you need to register in ThingSpeak cloud and then login to your account. After create a new channel with temperature in one field and humidity in another field. Once you created a new channel, it will generate a two API keys, they are READ API keys and WRITE API keys. First, copy the WRITE API keys from ThingsSpeak and paste it into the line (String apiKey = "OX9T8Y9OL9HD0UBP";) of the program. Next, replace the Host_Name and Password with your WiFi name and WiFi password in the two lines given below in the program. (String Host_Name = "Pantech" and String Password = "pantech123").

The Arduino program Uses DHT library, if it is not presented in your arduino IDE, select SketchàInclude libraryàManage librariesàInstall DHT Sensor library. Then compile the program and upload to a Arduino Uno through Arduino IDE. Ensure that WiFi modem and internet connection in your Smartphone or PC are working properly. After uploaded a program, the Temperature and Humidity data is uploaded on ThingSpeak platform. You can see it graphically in the private view window of your channel. And you can able to see the uploaded data from serial port of Arduino IDE.

                        Fig: 1.3: Graphical representation of Humidity and Temperature data

Arduino code :-

#include "DHT.h"

#include

#define DHTPIN 5                       // Digital Pin 5

#define DHTTYPE DHT11                  // We are Using DHT11

String apiKey = "OX9T8Y9OL9HD0UBP";    // Edit this API key according to your Account

String Host_Name = "Pantech";         // Edit Host_Name

String Password = "pantech123";          // Edit Password

SoftwareSerial ser(2, 3);              // RX, TX

int i=1;

DHT dht(DHTPIN, DHTTYPE);              // Initialising Pin and Type of DHT

void setup() {

Serial.begin(115200);                  // enable software serial

ser.begin(115200);                     // reset ESP8266

ser.println("AT+RST");               // Resetting ESP8266

dht.begin();                        // Enabling DHT11

char inv ='"';

String cmd = "AT+CWJAP";

       cmd+= "=";

       cmd+= inv;

       cmd+= Host_Name;

       cmd+= inv;

       cmd+= ",";

       cmd+= inv;

       cmd+= Password;

       cmd+= inv;

ser.println(cmd);                    // Connecting ESP8266 to your WiFi Router

  }

// the loop

void loop() {

  int humidity =  dht.readHumidity();             // Reading Humidity Value

  int temperature = dht.readTemperature();        // Reading Temperature Value

  String state1=String(humidity);                 // Converting them to string

  String state2=String(temperature);              // as to send it through URL



  String cmd = "AT+CIPSTART=\"TCP\",\"";          // Establishing TCP connection

  cmd += "184.106.153.149";                       // api.thingspeak.com

  cmd += "\",80";                                 // port 80

  ser.println(cmd);

  Serial.println(cmd);

 if(ser.find("Error")){

    Serial.println("AT+CIPSTART error");

    return;

  }

String getStr = "GET /update?api_key=";         // prepare GET string

  getStr += apiKey;

  getStr +="&field1=";

  getStr += String(state1);                       // Humidity Data

  getStr +="&field2=";

  getStr += String(state2);                       // Temperature Data

  getStr += "\r\n\r\n";

  cmd = "AT+CIPSEND=";

  cmd += String(getStr.length());                // Total Length of data

  ser.println(cmd);

  Serial.println(cmd);



if(ser.find(">")){

    ser.print(getStr);

    Serial.print(getStr);

  }

  else{

    ser.println("AT+CIPCLOSE");                  // closing connection

    // alert user

    Serial.println("AT+CIPCLOSE");

  }

 delay(1000);                                  // Update after every 15 seconds

}

Working of Project
